SMA 100 Series Support Matrix

07/23/2021 489 People found this article helpful 493,815 Views

Description

SRA/SMA Support Matrix: Can I Import the settings from SRA/SMA Models to other Models?

Refer this Migration Tool Link : https://www.sonicwall.com/support/knowledge-base/sma100-configuration-migration-tool/210608043257367/

Recommendation: Make sure customers having Firmware Versions builds older than 9.0, they need to upgrade to 9.0/9.0.0.10 first, and then use Migration Tool to convert settings. Please reach out to Sonicwall Technical Support.

Cause

Can I Import the settings from SRA/SMA Models to other SMA100 series Models?

Resolution

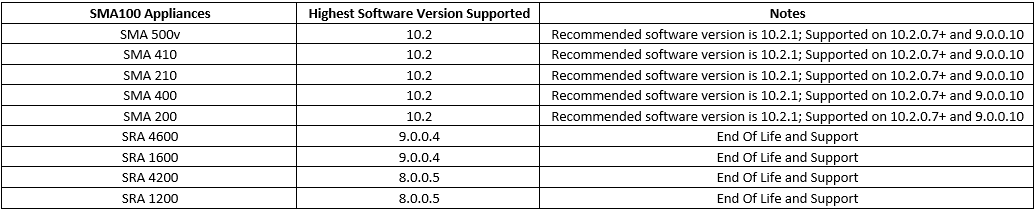

Currently Supported Software Versions & Hardware's along with EOL.

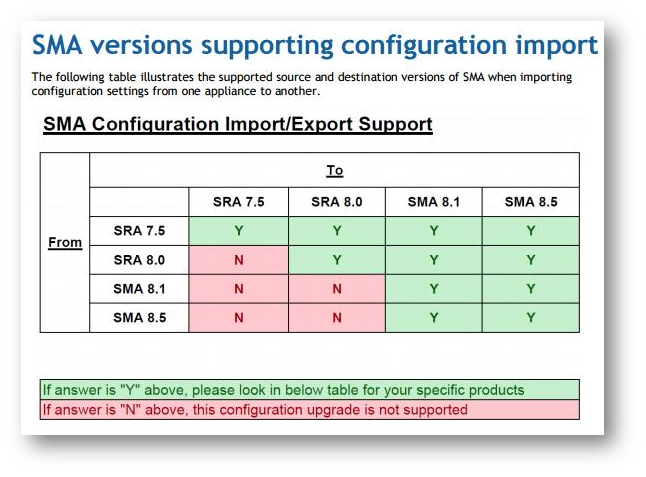

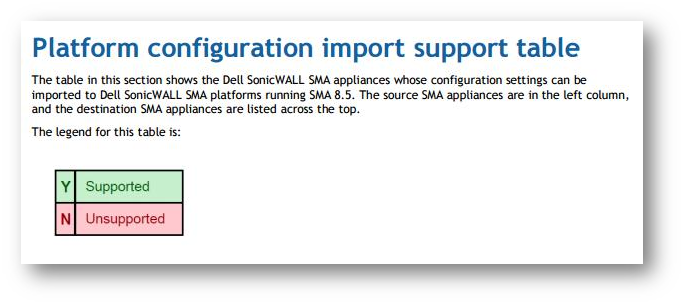

Importing configuration settings

You can import configuration settings from one appliance to another, which can save a lot of time when replacing an older appliance with a newer model. This feature is also useful when you need multiple appliances with similar configuration settings. Importing configuration settings, or preferences (“prefs”), to SonicWall appliances running SMA 8.5 is generally supported from the following SonicWall appliances running 7.5, 8.0, or 8.1:

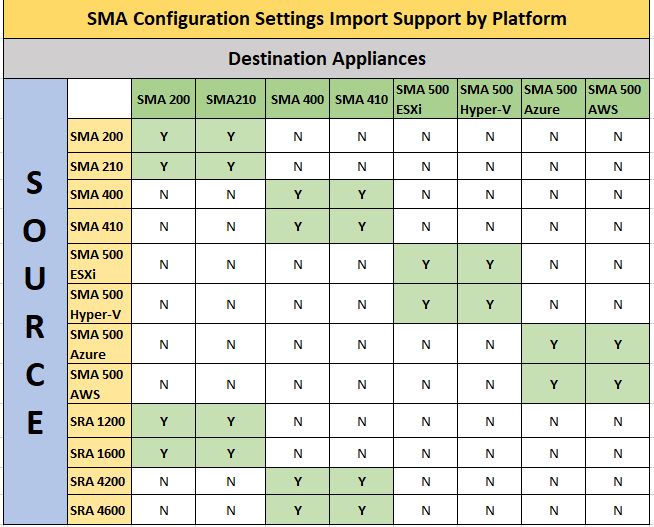

Supported SMA Product Models

SMA 200 & 400
SMA 210 & 410 (New Hardware's)
SMA 500v
SRA1600 to 200/210 could migrate configuration
SRA4600 to 400/410 could migrate configuration
SMA 500v to ESXi and HyperV could migrate configuration
SMA 500v to Azure and AWS could migrate configuration.

NOTE: Supported firmware versions on above SMA models will be from Ver-9.0/10.0 & Above.

Unsupported SMA Models & End of Life Products

SRA 1200, SRA 1600, SRA 4200, SRA 4600 & SRA Virtual Appliance

NOTE: Firmware versions 8.6.x will be end of life and the Last release is 8.6.0.10-20sv.

Refer this Migration Tool Link : https://www.sonicwall.com/support/knowledge-base/sma100-configuration-migration-tool/210608043257367/

Recommendation: Make sure Customers having Firmware Versions builds older than 9.0, they need to upgrade to 9.0/9.0.0.10 first, and then use migration tool to convert config.

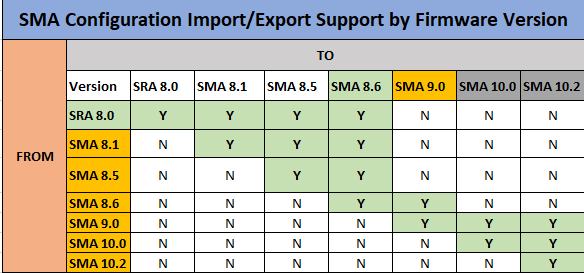

Latest Support Matrix

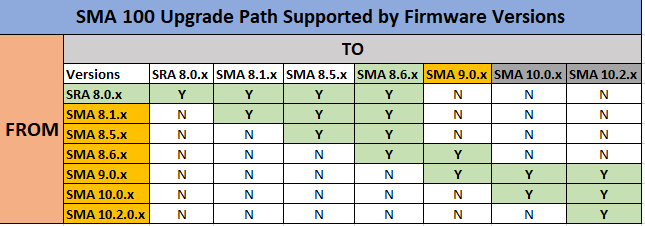

SMA Versions Firmware Upgrade Path:-

NOTE: Be sure to save a backup of your current configuration settings to your local computer before rebooting the SonicWall SMA appliance with factory default settings, as described in the Exporting a Copy of your Configuration Settings section.

Firmware Upgrade Steps:-

To upload a new firmware image and restart the appliance:
1 Download the Secure Mobile Access image file and save it to a location on your local computer.
2 Select UPLOAD NEW FIRMWARE from the System > Settings page. Browse to the location where you saved the Secure Mobile Access image file, select the file, and click ACCEPT. The upload process can take up to one minute.
3 When the upload is complete, you are ready to reboot your SonicWall SMA appliance with the new Secure Mobile Access image. Do one of the following:

• To reboot the image with current preferences, mouse over the New Firmware row and click the boot icon at the right, then click BOOT in the BOOT FIRMWARE dialog.

To reboot the image with factory default settings, mouse over the New Firmware row and click the boot icon at the right, select the Boot with factory default settings option, and then click BOOT in the BOOT FIRMWARE dialog.

After clicking BOOT, do not power off the device while the image is being uploaded to the flash memory.
5 After your SMA appliance successfully restarts with the new firmware, the login screen is displayed. The updated firmware information is displayed on the System > Status page and in the Current Firmware row on the System > Settings page.

FAQ

Can a 8.x config from SRA 1200/1600/4200/4600 [standalone] be imported into SMA 200/210/400/410 in 9.0/10.0 [standalone] ?
Could be migrated from 4600 or 1600 to SMA400/410 or SMA200/210 safely
Can a 8.x config from SRA 1200/1600/4200/4600 [standalone] be imported into SMA 400/410 in 9.0/10.0 [HA] ?
We need to import partial or break the HA and import partial. However for HA we recommend to *IMPORT* before HA configurations.
Can a 8.x config from SRA 4200/4600 [HA] be imported into SMA 200/210400/410 in 9.0/10.0 [standalone] ?
Could be migrated from 4600 or 1600 to SMA400/410 or SMA200/210 safely.
Can a 8.x config from SRA 1200/1600 to be imported into SMA 200/210 [standalone] ?
Yes, its supported. We can migrate it safely.

TIP:SMA 1000 Series Support Matrix
