How to block EXE files downloaded via http websites using App Rules

06/29/2023 127 People found this article helpful 492,449 Views

Description

Resolution

Resolution for SonicOS 7.X

This release includes significant user interface changes and many new features that are different from the SonicOS 6.5 and earlier firmware. The below resolution is for customers using SonicOS 7.X firmware.

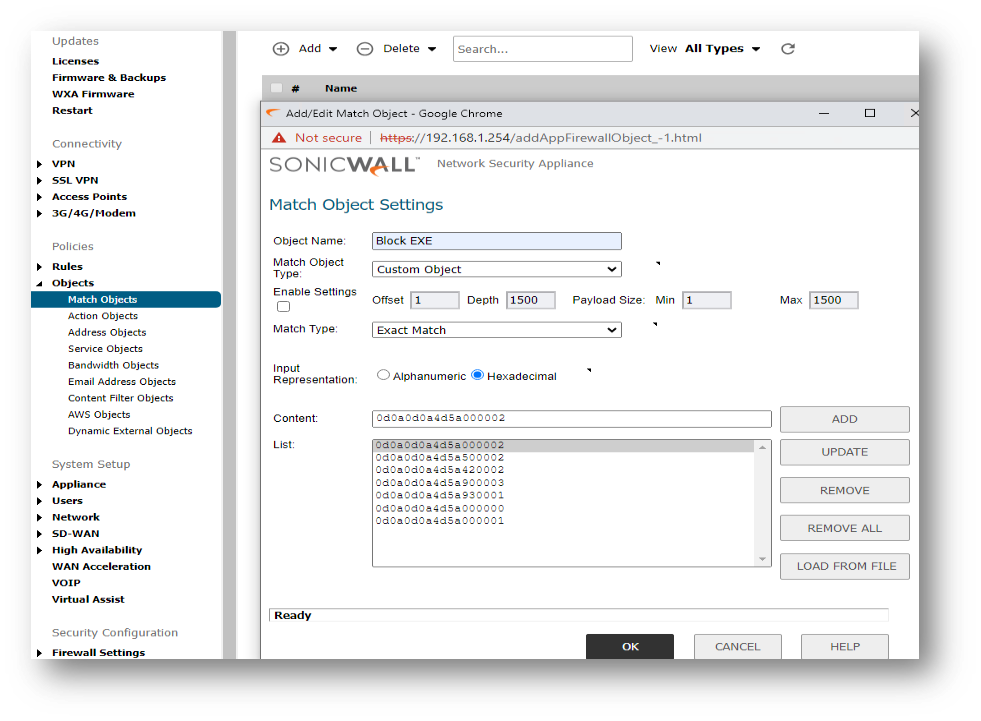

Create Match Object:

Click Object in the top navigation menu
Navigate to Match Objects | Match Objects
Click on Add and select Match Object Type as Custom Object

Select input type representation as hexadecimal and add the following patterns into the object (or you can add these to a file by selecting Import option, so you do not have to type them in manually) and click on Save

0d0a0d0a4d5a000002
0d0a0d0a4d5a500002
0d0a0d0a4d5a420002
0d0a0d0a4d5a900003
0d0a0d0a4d5a930001
0d0a0d0a4d5a000000
0d0a0d0a4d5a000001

Create App Rule:

Click Rules in the top navigation menu
Navigate to Rules | App Rules
Click on Add and select Policy Type as HTTP Server and use the above created object in this Application policy. Use Reset/Drop action if you want to block these or No Action if you want to just log them. Set direction of the policy as incoming and click on OK to save the policy

Resolution for SonicOS 6.5

This release includes significant user interface changes and many new features that are different from the SonicOS 6.2 and earlier firmware. The below resolution is for customers using SonicOS 6.5 firmware.

Create Match Object:

Click Manage in the top navigation menu
Navigate to Objects | Match Objects
Click on Add and select Match Objects under the drop down

Create the Match Object of type Custom. Using input type hexadecimal, add the following patterns into the object (or you can add these to a file which you can use with the Load from File option, so you do not have to type them in manually) and click on OK to Save

0d0a0d0a4d5a000002
0d0a0d0a4d5a500002
0d0a0d0a4d5a420002
0d0a0d0a4d5a900003
0d0a0d0a4d5a930001
0d0a0d0a4d5a000000
0d0a0d0a4d5a000001

Create App Rule:

Click Manage in the top navigation menu
Navigate to Rules | App Rules
Click on Add and select policy type as HTTP Server and use the above created object in this Application policy. Use Reset/Drop action if you want to block these or No Action if you want to just log them. Set direction of the policy as incoming
Click on OK to save the policy

When an HTTP download of an EXE file is blocked by the configured Application Firewall policy, you will see a log message like this:

Resolution for SonicOS 6.2 and Below

The below resolution is for customers using SonicOS 6.2 and earlier firmware. For firewalls that are generation 6 and newer we suggest to upgrade to the latest general release of SonicOS 6.5 firmware.

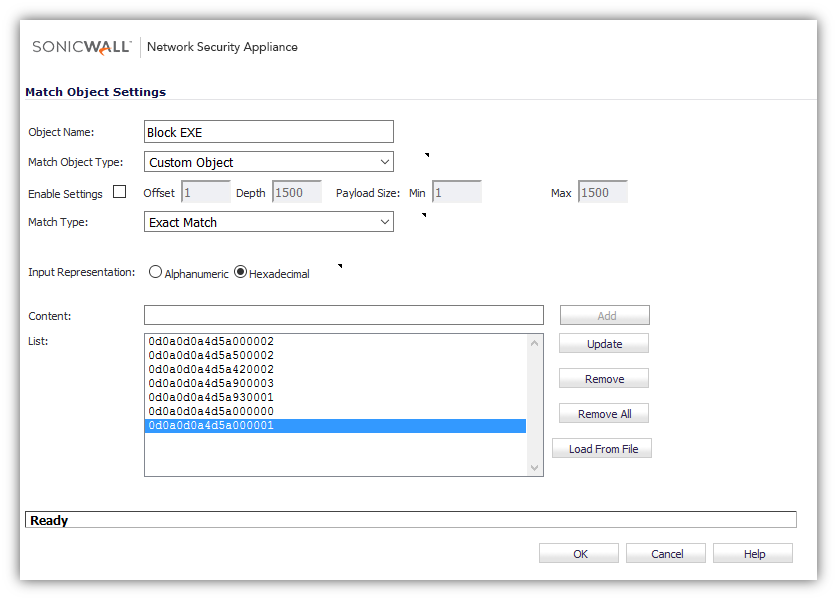

Create the Match Object of type Custom. Using input type hexadecimal, add the following patterns into the object (or you can add these to a file which you can use with the Load from File option, so you do not have to type them in manually) and click OK

0d0a0d0a4d5a000002
0d0a0d0a4d5a500002
0d0a0d0a4d5a420002
0d0a0d0a4d5a900003
0d0a0d0a4d5a930001
0d0a0d0a4d5a000000
0d0a0d0a4d5a000001

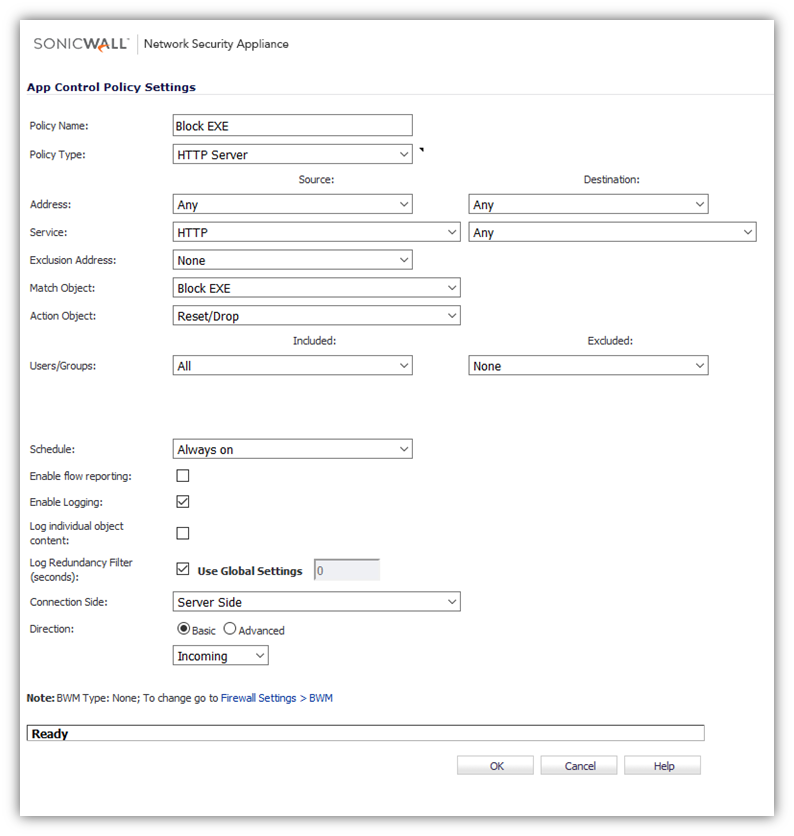

Create App Control Policy of type HTTP Server and use the above created object in this Application policy. Use Reset/Drop action if you want to block these or No Action if you want to just log them. Set direction of the policy as ‘incoming’ and save the policy:

When an HTTP download of an EXE file is blocked by the configured Application Firewall policy, you will see a log message like this:
